3016 Telescopic GNSS Survey Pole

The 3016 is a compact telescopic survey pole for GNSS and RTK field work. It extends to 1.6 m and folds down to 622 mm, making it much easier to carry and store when moving between survey sites.

At just 0.58 kg, the pole adds very little weight to a field kit. The three-section construction uses 20 mm, 25 mm and 30 mm diameter tubes, with each section secured by a two-position locking handwheel.

The locking system is simple to operate. A slight turn of the handwheel secures the section in place and helps keep the selected height stable during measurement.

The pole comes with a standard 5/8"-11 thread for compatible GNSS receivers and surveying accessories.

• Maximum length: 1600 mm
• Collapsed length: 622 mm
• Weight: 0.58 kg
• Three telescopic sections
• Tube diameters: Ø20 / Ø25 / Ø30 mm
• Two-position locking handwheel
• Standard 5/8"-11 thread
• Compact for transport and storage

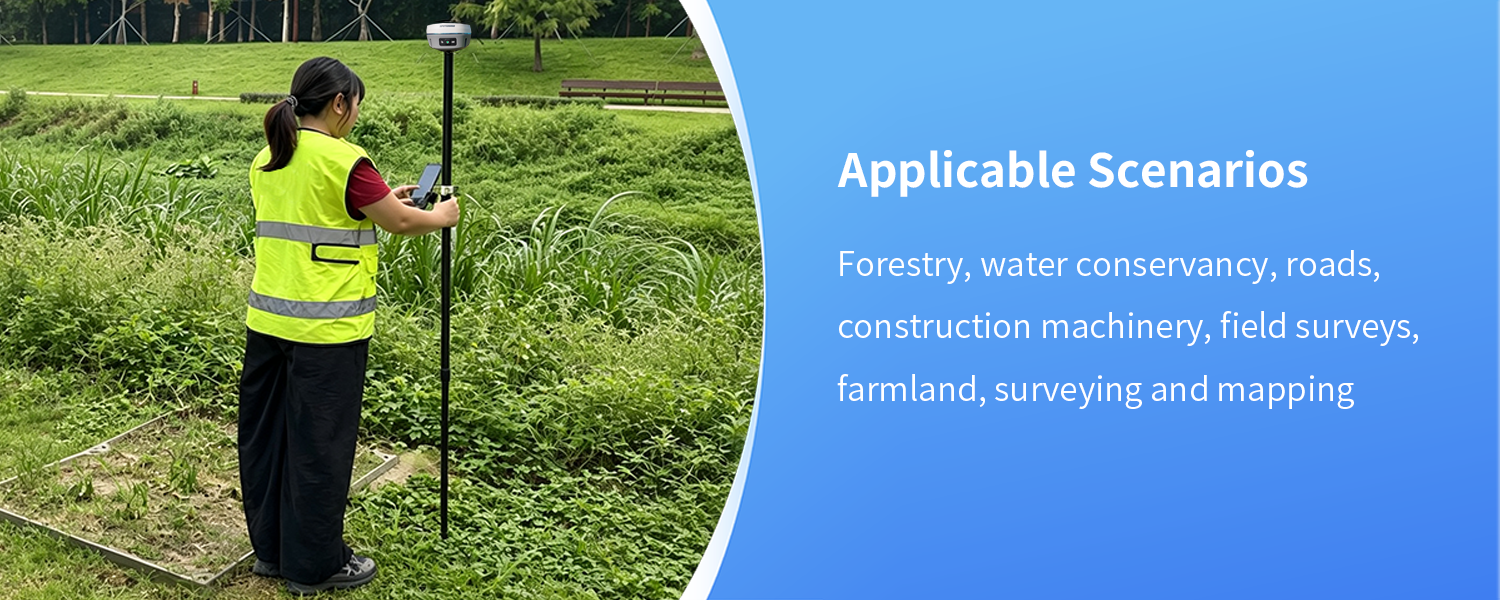

GNSS surveying, RTK field work, topographic surveying, construction measurement and general field positioning.
